To make the sound more clear, more energetic, and richer, especially for the low range.

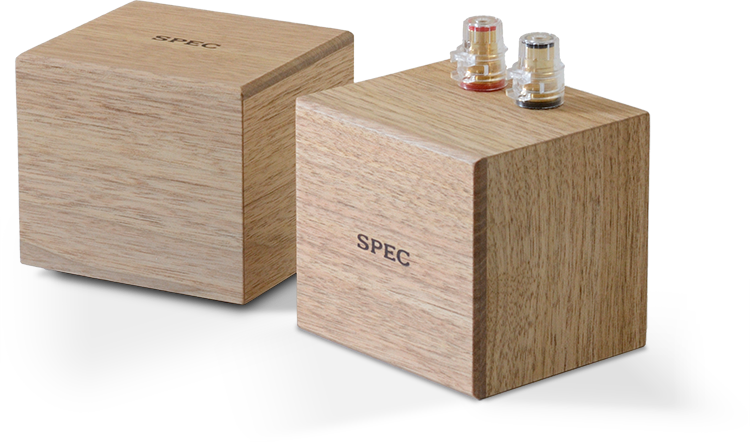

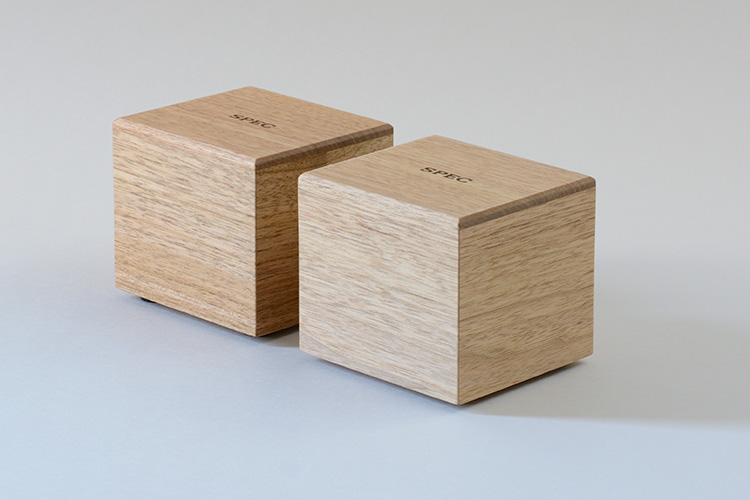

Real Sound Processor
RSP-W1EX
(2 units/set)
To make the sound more clear, more energetic, and richer, especially for the low range.
Real Sound Processor
(2 units/set)
The Real Sound Processor is an audio accessory for better sound quality by absorption of back electromotive force, and the correction of impedance fluctuations, that are detrimental to sound quality between the amplifier and speakers.
Amplifiers and speakers affect each other.
Changes in the music signal cause the impedance of the speakers to fluctuate.
When the amplifier sends the music signal to the speakers, this impedance fluctuation becomes a troublesome load for the amplifier.
Back electromotive force generated by the speakers’ voice coil interferes with the production of natural, “pleasing to the ear” sound.
The Real Sound Processor compensates for this impedance fluctuation, which is detrimental to sound quality, and absorbs back electromotive force. This allows the amplifier and speakers to break free from each other's influence, allowing the speakers to be driven by the amplifier as they should be.

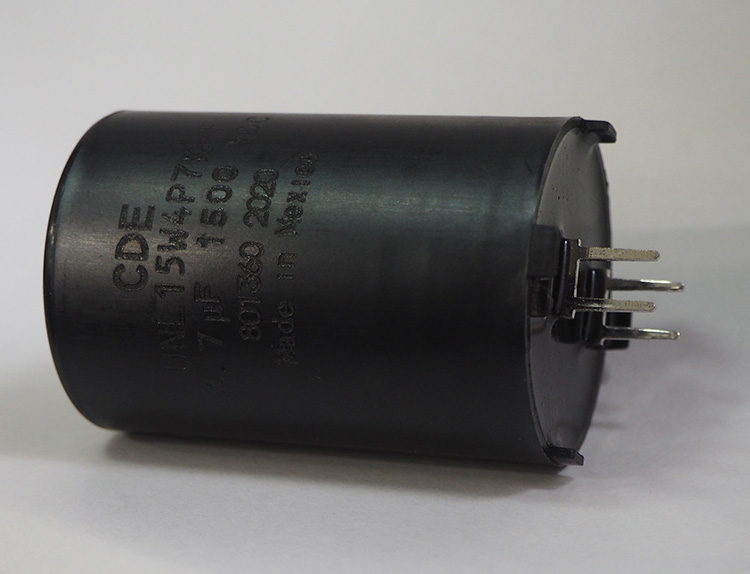

Robust capacitor with a withstand voltage of 1500V plays powerful bass.
Parts placed directly on the spruce pedestal
Pedestal unit housed in a walnut case
Audio quality parts are placed in contact with the spruce pedestal directly. They vibrate together with the music signal to bring out rich bass. They are connected by aerial wiring and housed in a walnut wood outer box. The RSP-W1EX has an attractive bass due to the hybrid structure of spruce and walnut. The hybrid structure using spruce material is based on the same idea as our amplifier. It is the idea that Real Sound Processor is also a musical instrument.

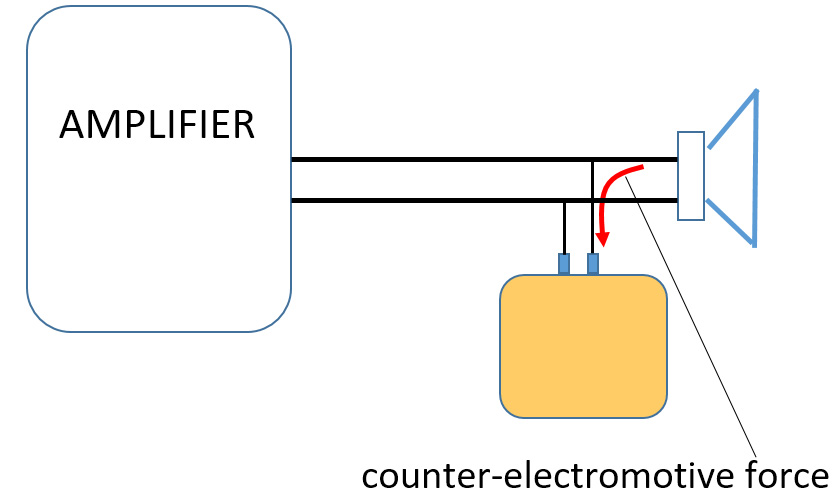

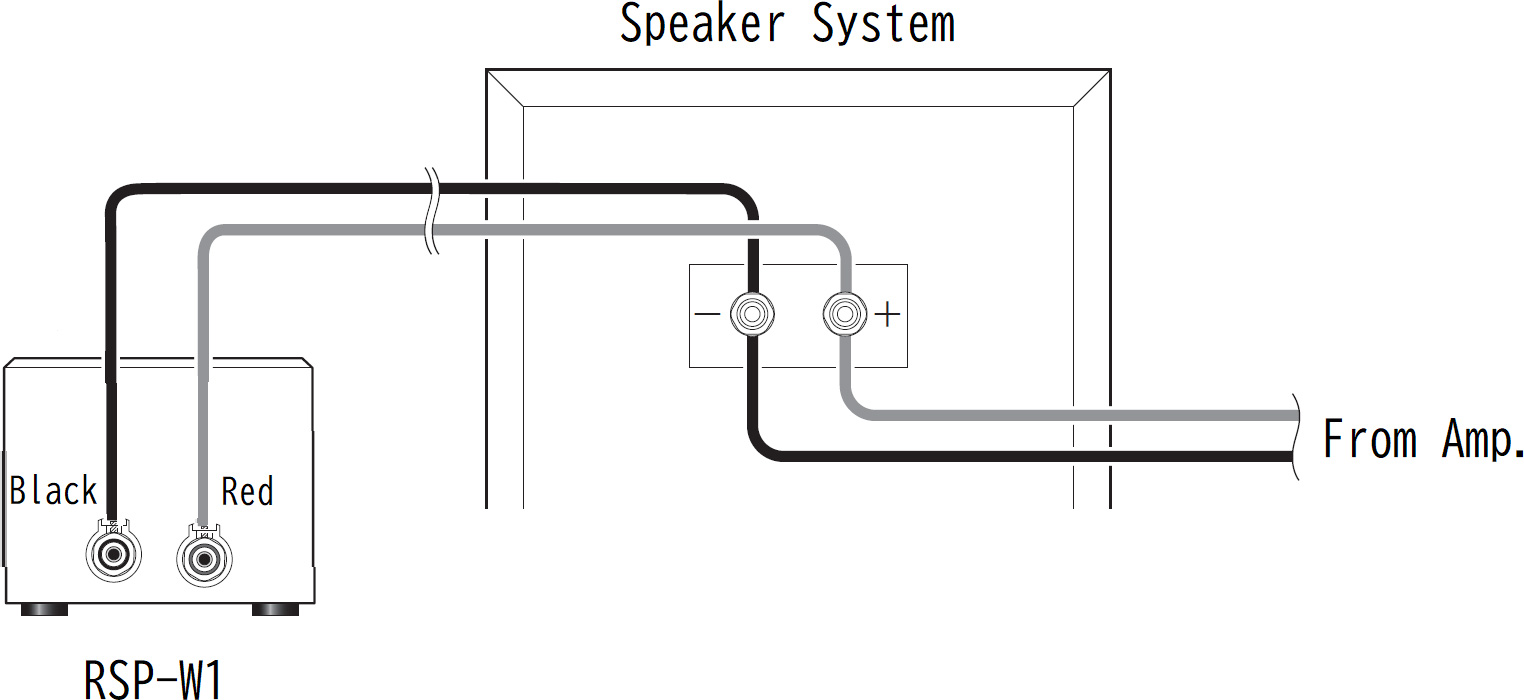

The RSP-W1 passes the current due to the counter-electromotive force. This current, if we express it directly, acts like as a “short brake" in the motor. It brakes unwanted vibrations of woofer, resulting in agile its movement. The RSP-W1 is set to pass low-frequency signals, so it achieves ideal woofer movement.
| Impedance of the speaker | 10Ω or less is desirable. | |
|---|---|---|
| Maximum amplifier output | 1 kW or less is desirable. | |
| External Dimensions | Width 100 mm / Height 85 mm / Depth 117 mm | |
| Weight | Approx. 360g (1 unit) | |
| Appearance | Walnut veneer, Branding iron, Urethane coating | |
| Packing Contents | Main unit x 2, Polishing cloth x 1, Instruction manual/Warranty x 1 | |
＊ Speaker cords are not included.
＊ Specifications and appearance are subject to change/improvement without notice.

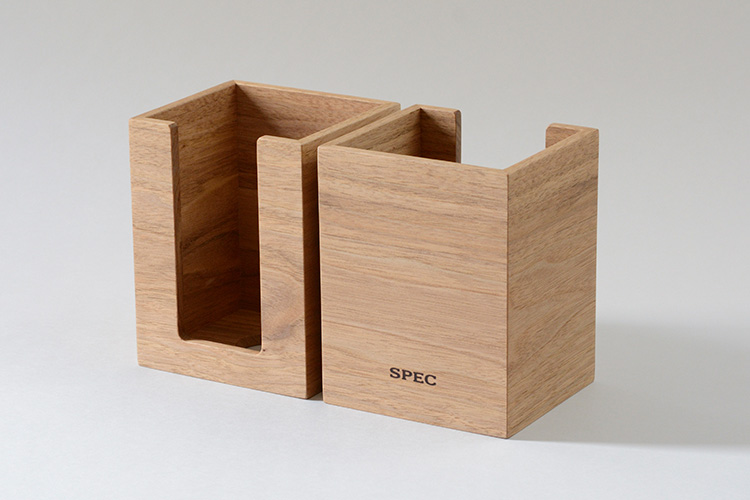

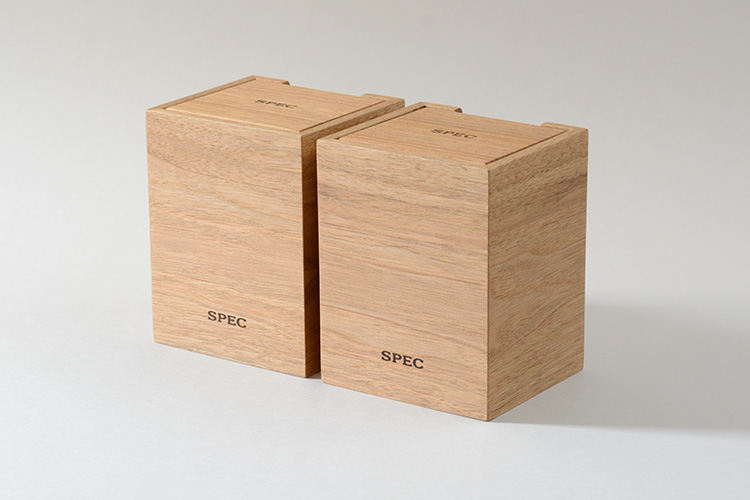

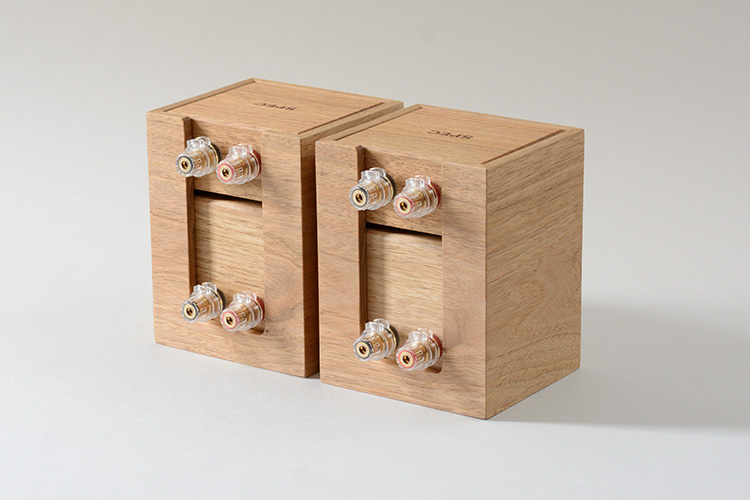

Specialized Case for RSP-W1EX
A specialized stacking case (sold separately) is available in consideration of use with the RSP-W1EX.
When used in combination with the Real Sound Processor, a wider bandwidth effect can be realized.
| External Dimensions | Width 115 mm / Height 146 mm / Depth 105 mm |
|---|---|
| Weight | Approx. 225g (1 unit) |

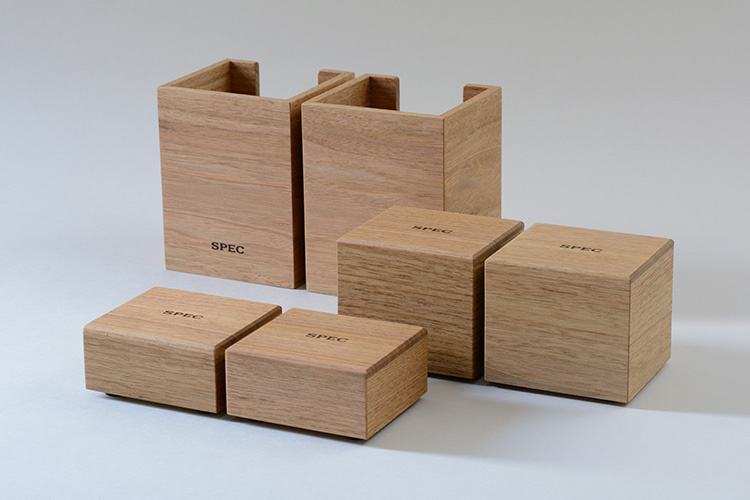

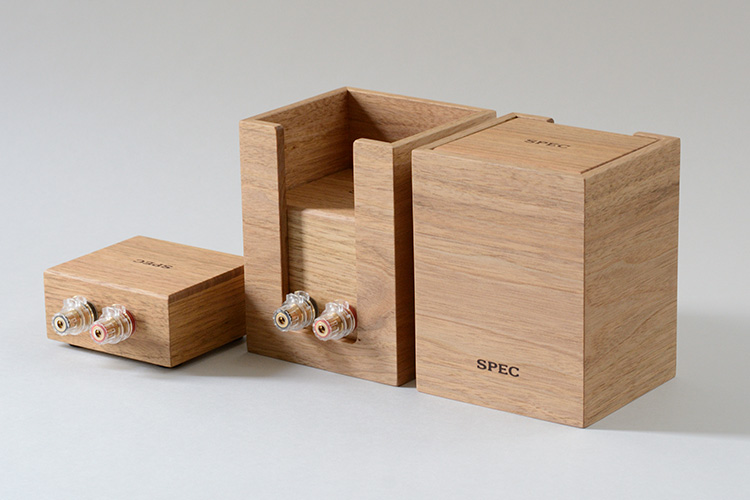

＊ The photo shows the RSP-W1EX and RSP-AZ9 built into RSP-W1-CEX.
＊ Specifications and appearance are subject to change /improvement without notice.
