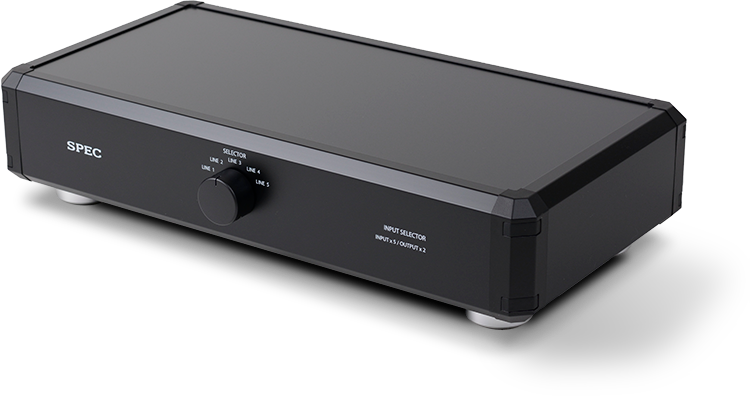

Line Selector

H-SL55

Mechanical Contact Passive Selector

H-SL55

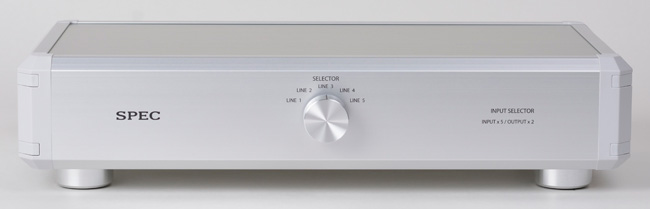

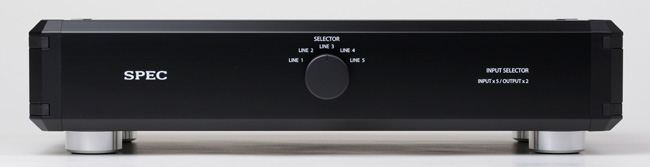

A simple selector with no change in sound quality. 4-channel mechanical selector selects the RCA and XLR signals and outputs them to the RCA and XLR terminals.

Block Diagram

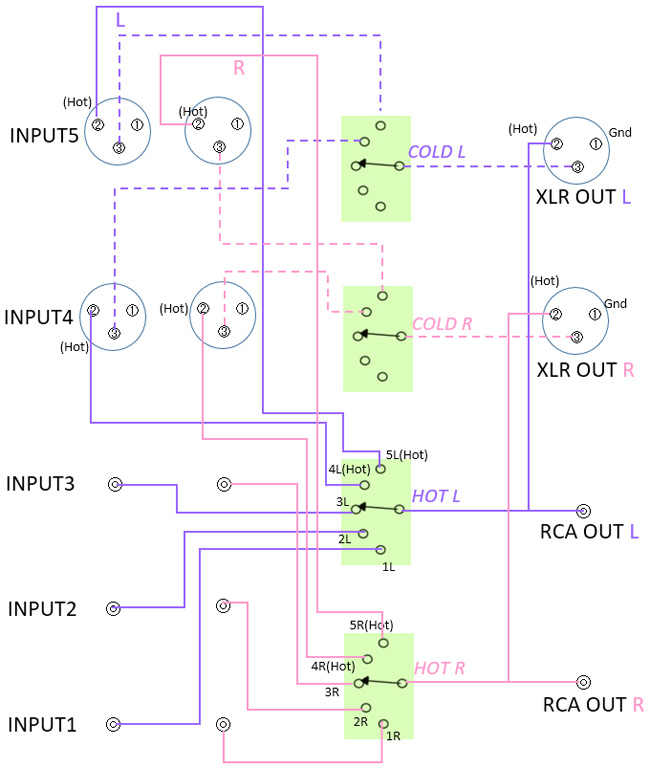

The hot and cold signals entered to an input XLR terminal(line 4,5) pass through the mechanical contacts of the selector and are led directly to the hot and cold output XLR terminals.The hot signal is also led to the output RCA terminal.
The signal entered to an input RCA terminals(line1,2,3) is led to the output RCA terminal and also hot terminal of output XLR terminals.
XLR outputs (HOT) and RCA outputs are directly connected bywires.

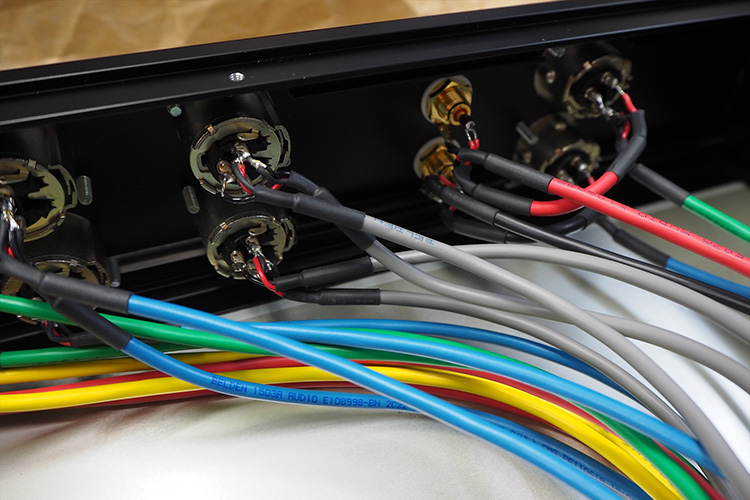

Parts and internal wiring

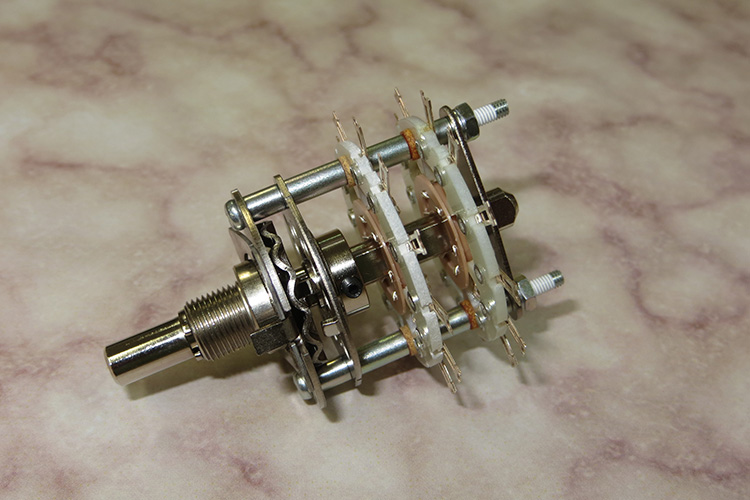

Highly durable / reliable selector body also used in our high-end Amplifiers.

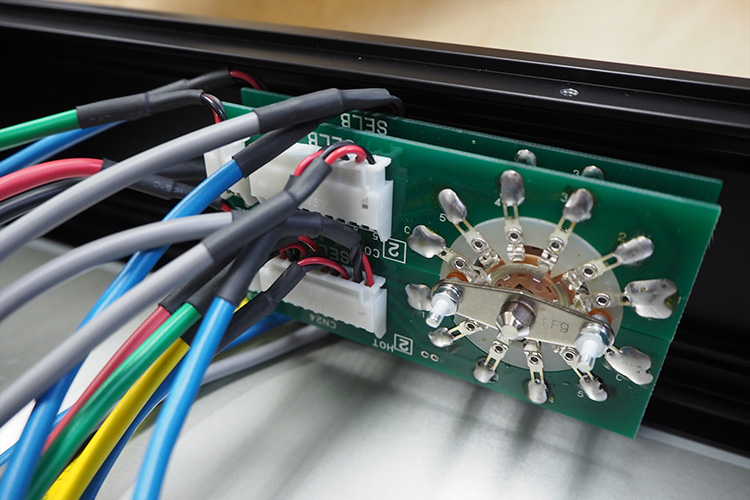

Selector connection assay incorporating selector body

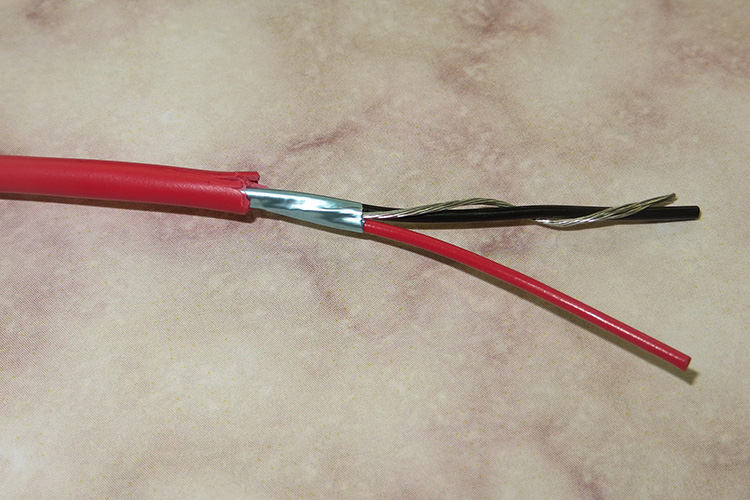

All wiring uses BELDEN1503. Keep the signal freshness with a reliable shield.

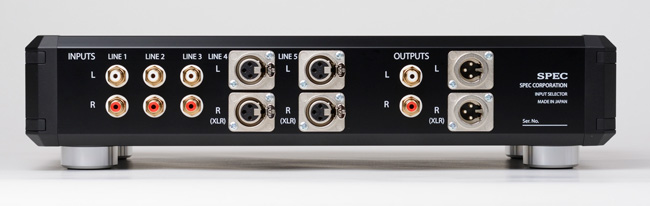

H-SL55 Terminal Specifications

INPUTS 3RCA,2XLR
OUTPUTS 1RCA,1XLR

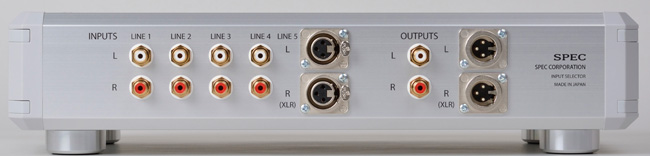

H-SL5 (Silver Model) Terminal Specifications

INPUTS 4RCA,1XLR
OUTPUTS 1RCA,1XLR
